Sentinel Plugin for Jenkins

The following instructions for downloading and installing the Sentinel Plugin for Jenkins, apply to both Mac and Windows operating systems

Downloading the Plugin

The plugin is available from: WhiteHat Customer Portal

Download from the Customer Portal

To download the plugin from the WhiteHat Customer Support Portal, perform the following steps:

  1. Follow this link to the WhiteHat Customer Portal.

  2. Log in to your WhiteHat Customer Support Portal account.

    jira plugin customer portal 1

  3. Type ‘Jenkins Plugin’ into the search field provided.

    jira plugin customer portal 2

  4. Click on the WHS Jenkins Plugin and Integration Guide in the search results.

    jenkins plugin customer portal 1

  5. Click Link to Document. This opens a new tab with the download link for the plugin and usage documentation.

    jenkins plugin customer portal 2

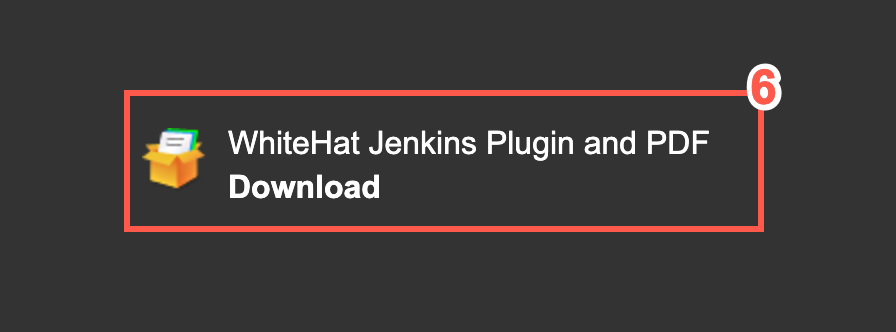

  6. Click Download to begin the download.

    jenkins plugin customer portal 3

  7. If your browser asks if you want to allow downloads from this website, click Allow. The downloaded-content folder will automatically be downloaded to your downloads folder or your designated location. This folder contains the .hpi plugin file along with the installation and usage .pdf file.

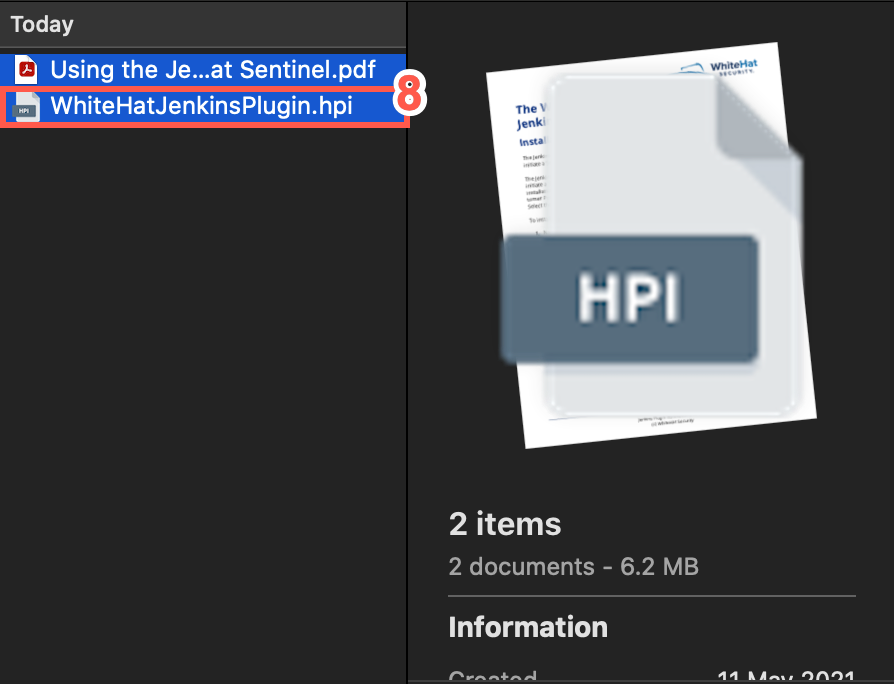

  8. The downloaded-content file is located in your downloads folder, as displayed below.

    jenkins plugin customer portal 4

Now that the plugin is downloaded, you will need to install it (Installation Process) and then configure it (Configure an Existing Project for the WhiteHat Jenkins Plugin).

Installation Process

The Jenkins plugin for WhiteHat Sentinel enables you to add applications and/or codebases and initiate a Sentinel scan directly from your Jenkins project.

To install the WhiteHat Jenkins Plugin, follow these steps:

  1. Navigate to Jenkins and select Manage Jenkins.

    jenkins plugin install 1

  2. Click on Manage Plugins.

    jenkins plugin install 2

  3. Select the Advanced tab.

    jenkins plugin install 3

  4. Under the Upload Plugin heading select Choose file to upload the plugin.

  5. Navigate to your downloads folder and select the WhiteHatJenkinsPlugin.hpi file.

    jenkins plugin install 4

  6. Select Upload to upload the WhiteHat Jenkins Plugin.

    jenkins plugin install 5

  7. If the Plugin has successfully been installed, Success is displayed beside WhiteHat_Sentinel_Jenkins_Plugin in the update centre.

    jenkins plugin install 6

  8. If necessary, restart Jenkins.

Once the WhiteHat Sentinel Jenkins has been installed, continue to Using Jenkins.
